MFR-A1-050
Product description

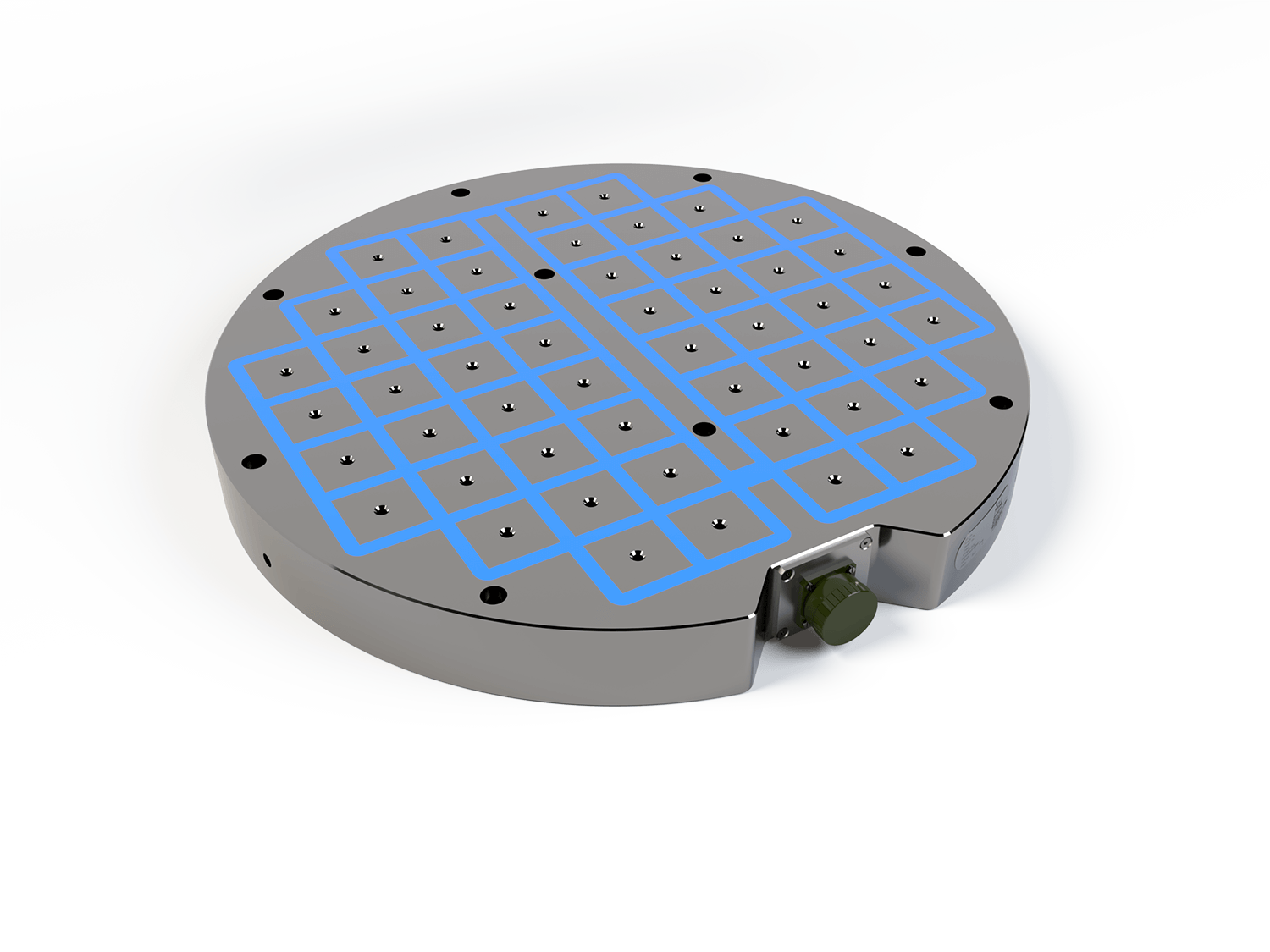

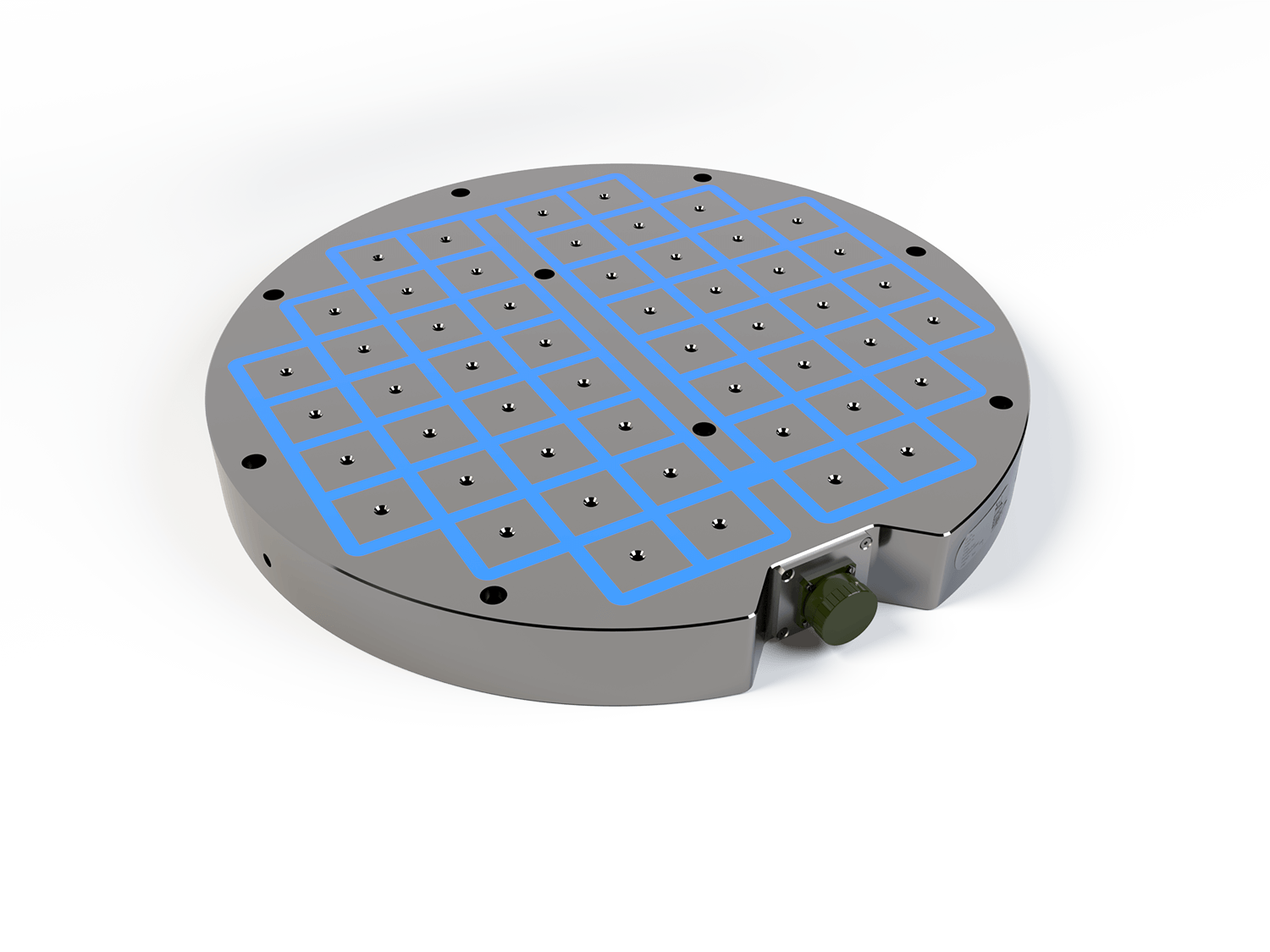

CIRCULAR ELECTRO-PERMANENT CHUCK FOR REMOVAL THROUGH MILLING OF SMALL AND MEDIUM SIZED WORK-PIECES WITH MEDIUM-LOW THICKNESS, SUITABLE FOR ROUND-TABLE MACHINES.
| MODEL | CODE | DIMENSIONS | N. OF POLES | WEIGHT | MAXIMUM CLAMPING FORCE [kN] | CONNECTION | NUMBER OF CHANNELS | |
| Diam. | H | |||||||
| MFR-A1-050-0300 | 5051806 | 300 | 66 | 10 | 32 | 39 | 4-PIN | 1 |
| MFR-A1-050-0420 | 5009786 | 420 | 66 | 22 | 64 | 86 | 4-PIN | 1 |
| MFR-A1-050-0500 | 5043733 | 500 | 66 | 32 | 90 | 125 | 4-PIN | 1 |
| MFR-A1-050-0600 | 5009789 | 600 | 66 | 52 | 130 | 204 | 4-PIN | 1 |
| MFR-A1-050-0800 | 5043748 | 800 | 66 | 84 | 232 | 329 | 4-PIN | 1 |
| MFR-A1-050-1000 | 5043418 | 1000 | 66 | 120 | 362 | 470 | 7-PIN | 2 |
| MFR-A1-050-1200 | 5051807 | 1200 | 66 | 192 | 522 | 752 | 7-PIN | 2 |
| MFR-A1-050-1500 | 5051808 | 1500 | 66 | 296 | 816 | 1160 | 7-PIN | 4 |
