PM81D
Product description

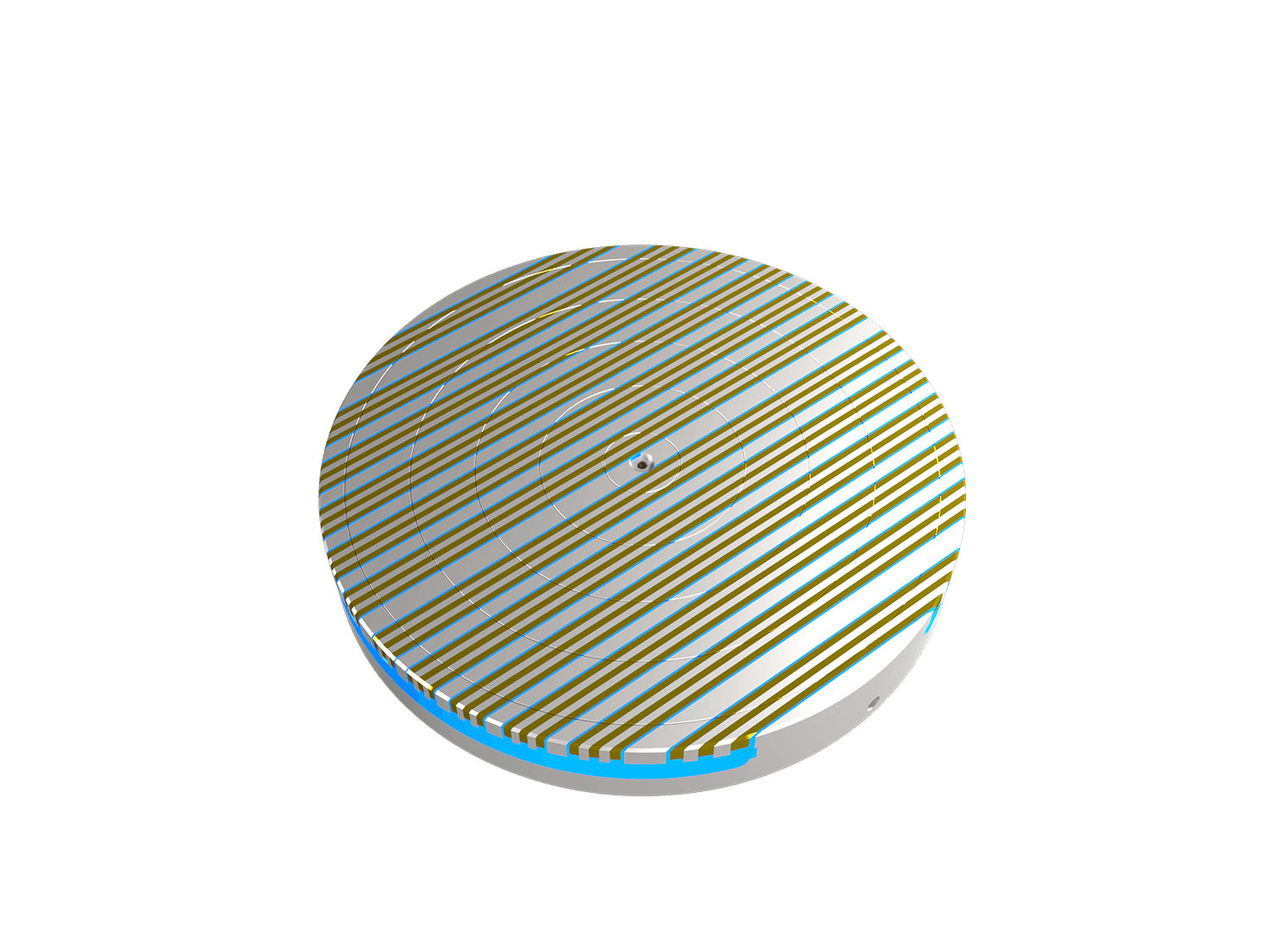

OPEN-POLE ELECTRO-PERMANENT CHUCK FOR CIRCULAR GRINDING FEATURING A NO RESIDUAL DEMAG CYCLE AND POLE PITCH WITH IRON AND RESIN STRUCTURE.
It represents the specific solution for thin-walled work-pieces (over 7 mm) and precision circular machining. Not suitable for the machining of workpieces with thickness inferior to 3mm and dimensions smaller than 50x 50mm.
| MODEL | DIMENSIONS | WEIGHT[kg] | MAXIMUM CLAMPING FORCE [N/cm2] | NUMBER OF CHANNELS | |
| ØD [mm] | H [mm] | ||||
| PM81.00250.D | 250 | 71 | 24 | 75 | 1 |
| PM81.00300.D | 300 | 71 | 35 | 75 | 1 |
| PM81.00350.D | 350 | 71 | 48 | 75 | 1 |
| PM81.00400.D | 400 | 71 | 62 | 75 | 1 |
| PM81.00450.D | 450 | 71 | 79 | 75 | 1 |
| PM81.00500.D | 500 | 71 | 97 | 75 | 1 |
| PM81.00600.D | 600 | 71 | 140 | 75 | 1 |
| PM81.00650.D | 650 | 71 | 165 | 75 | 1 |
| PM81.00700.D | 700 | 71 | 191 | 75 | 1 |
| PM81.00800.D | 800 | 71 | 250 | 75 | 1 |
| PM81.01000.D | 1000 | 77 | 423 | 75 | 2 |
| PM81.01200.D | 1200 | 77 | 609 | 75 | 2 |
