PM82
Product description

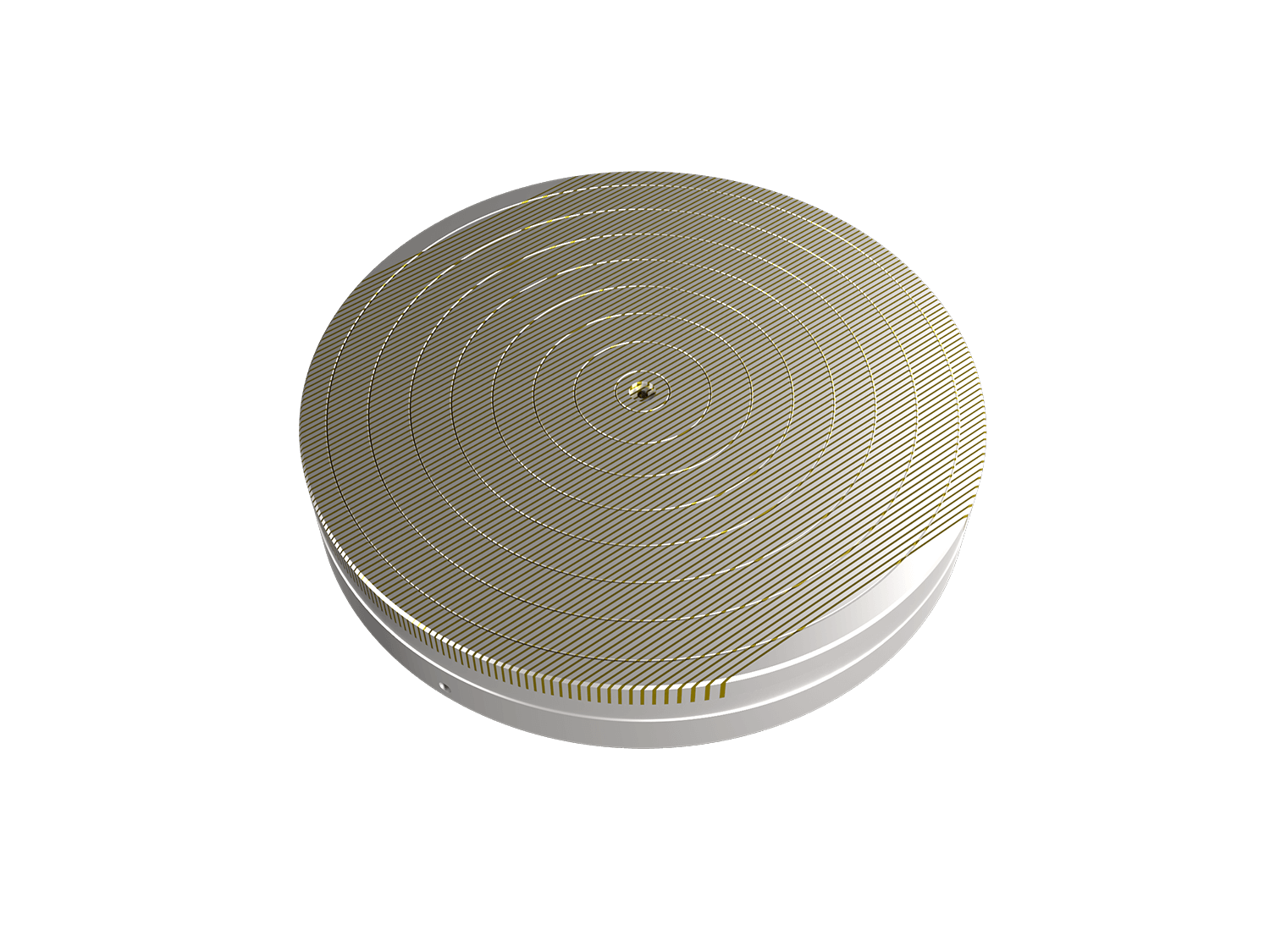

ELECTROPERMANENT CHUCK FOR CIRCULAR GRINDING OPERATIONS FEATURING A NO RESIDUAL DEMAG CYCLE AND AN ADDITIONAL UPPER PLATE OUT OF IRON AND BRASS
The outstanding quality of this model lies in the upper plate, which is fixed on the magnetic chuck to ensure stability. It is mainly used for high precision grinding and is able to clamp extremely well even very thin pieces thanks to dense pole pitch
(over 5 mm) on circular machines. Not suitable for the machining of workpieces with thickness inferior to 2mm and dimensions smaller than 50x 50mm.
| MODEL | DIMENSIONS | WEIGHT[kg] | MAXIMUM CLAMPING FORCE [N/cm2] | NUMBER OF CHANNELS | |
| ØD [mm] | H [mm] | ||||
| PM82.00300 | 300 | 71 | 35 | 65 | 1 |
| PM82.00400 | 400 | 81 | 71 | 65 | 1 |
| PM82.00500 | 500 | 81 | 111 | 65 | 1 |
